Aluprof MB-86 Fold Line
Bi-folding doors
Aluprof MB-86 Fold Line fold-and-slide doors
Aluprof MB-86 Fold Line

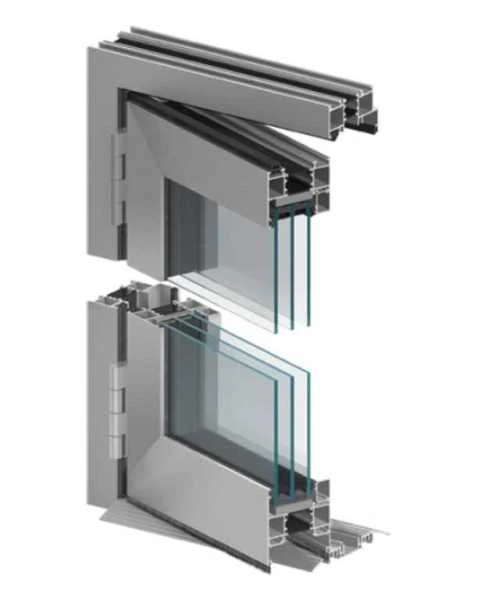

- Three-chambered, heavy-duty aluminium sections with a design depth of 86 mm for frames and 77 mm for door leaves
- The central chamber of the sections is equipped with thermal breaks with a width of 24 mm for frames and 34 mm for door leaves, which translates into high thermal insulation of the construction.
- Specialist fittings designed for the MB-86 FOLD LINE system guarantee comfortable functioning of door leaves with a maximum weight of 100 kg
- Large permissible dimensions allow the construction of doors with leaf heights of up to 2,700 mm and widths of up to 1,000 mm
- Different versions of threshold solutions: classic (with a swing seal) or convenient (with a low threshold)
- A large glazing range of 14 to 61.5 mm allows the use of both one- and two-chambered sealed units, including specialised ones: with improved sound insulation or burglary resistance.
Thermal transmittance Uw
Regarding a 4-sash inward-opening structure with dimensions 4000 x 2200 mm, with 4 Low-E/18ar/4/18ar/4 Low-E glazing, Ug = 0.5 Multitech Black [48mm].
Watertightness
7/10
Our assessment:
Types of ornamental glass
-
![]()
-
![]()
-
![]()
-
![]()
-
![]()
-
![]()
-
![]()
-
![]()
-
![]()
-
![]()
-
![]()
-
![]()
-
![]()
-
![]()
-
![]()
-
![]()
-
![]()
-
![]()
-
![]()
-
![]()
RAL 9016 White Warm Edge Spacer
-
![]()
RAL 8003 Brown Warm Edge Spacer
-
![]()
RAL 9004 Black Warm Edge Spacer
-
![]()
RAL 7035 Grey Warm Edge Spacer
-
![]()
RAL 7040 Grey Warm Edge Spacer
-
![]()
Aluminum spacer
-
![]()
RAL 8016 Brown Warm Edge Spacer
