Aluprof MB-77HS

Aluminium sliding systems

System with improved thermal insulation

  • Warm passive window

  • Excellent soundproofing

  • Resistant and airtight

  • Wide range of colours

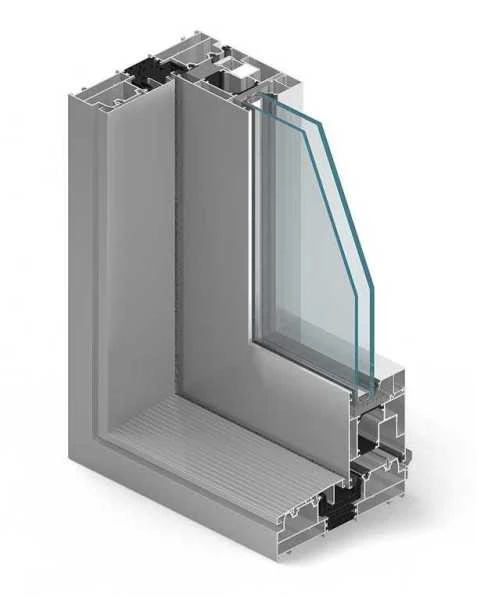

Aluprof MB-77HS

The MB-77HS system is a top-performing product that meets all the criteria for energy-efficient sliding doors.

It enables great connection to the outdoors and, when open, does not occupy any space inside the room, enhancing user comfort.

It offers two construction variants distinguished by their thermal insulation levels: ST and HI. The profile construction enables the production of exclusive, large-size doors equipped with single or double-chambered glazing. The materials and technical solutions employed contribute to a high level of thermal and acoustic insulation. Due to its features, this system is ideal for use in single-family homes, luxurious apartments, or hotels.

  • robust and slim profiles allow for the creation of low-threshold doors capable of supporting leaf weights up to 400 kg, with heights up to 3.2 m, and widths up to 3.3 m;
  • the system offers the option to construct 90 and 270-degree corner doors with a movable mullion;
  • a broad selection of infills is available, including the use of single or double-chambered sets, thermal breaks, and additional accessories. Insulating inserts provide excellent thermal and acoustic performance.



Thermal transmittance Uw

Regarding construction in scheme A, with dimensions of 2500 x 2200 mm, with glazing 4 Low-E/18ar/4/18ar/4 Low-E Ug=0.5 Multitech Black [48mm]

0,99 W/(m²K)

Watertightness

up to 9A

8.5/10

Our assessment:

Types of ornamental glass

  • Silvit
  • Master point
  • Master carre
  • Kura
  • Cathedral
  • Matte Delta
  • Colourless Flutes
  • Crepi
  • Chinchila
  • Colourless Delta
  • Mirastar
  • Decormat
  • Stopsol clear
  • Brown Stopsol
  • Grey Antisol
  • Green Antisol
  • Blue Antisol
  • Brown Antisol
  • Green Stopsol

Spacers

  • RAL 9016 White Warm Edge Spacer

  • RAL 8003 Brown Warm Edge Spacer

  • RAL 9004 Black Warm Edge Spacer

  • RAL 7035 Grey Warm Edge Spacer

  • RAL 7040 Grey Warm Edge Spacer

  • Aluminum spacer

  • RAL 8016 Brown Warm Edge Spacer
