Aluprof Skyline TYPE R

Aluminium sliding systems

Sliding door system with concealed frame

  • Warm passive window

  • Excellent soundproofing

  • Resistant and airtight

  • Wide range of colours

Aluprof Skyline TYPE R

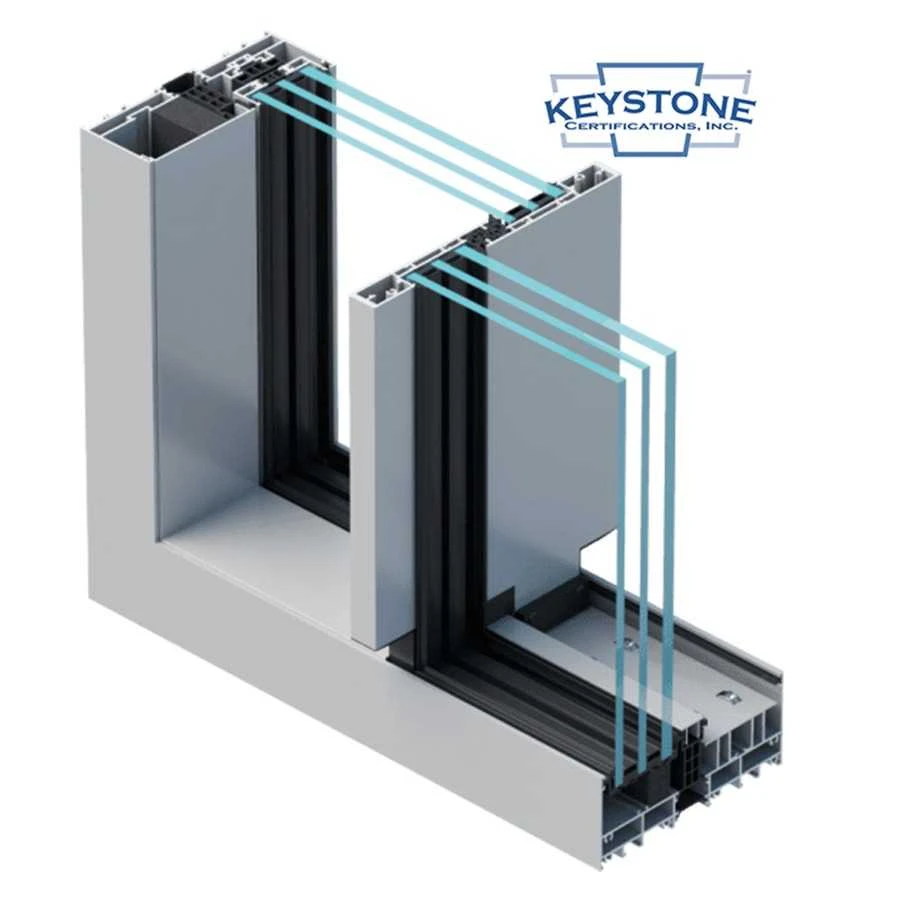

MB-SKYLINE TYPE R is a modern large-size sliding door system characterised by lightness and aesthetics. It is based on narrow profiles that give structures a modern look while providing a panoramic view of the home’s surroundings. The main characteristics of the MB-SKYLINE TYPE R door – which the user can appreciate at first glance – include the completely concealed door leaf profiles, the narrow mullion and the shallow frame.

Functionality and aesthetics:

  • door frame integrated into walls, floor and ceiling;
  • door leaf profiles completely concealed in the bottom and top door frame;
  • if the actuator drive or mullion locking system is selected, the door leaf profiles are not visible on the sides of the structure either
  • maximum weight of manually opened leaf: 500 kg, with concealed actuator: 1,200 kg glazing range: 52 to 60 mm;
  • sliding seals used in the frame: modern, aesthetic and quiet in operation;
  •  rollers on which the leaf moves are available in stainless steel and black polyamide;
  • manual locking with BT Lock fitting or on the mullion;
  • surface actuator with radio receiver and security radar;
  • modern drainage system with a system gutter;
  • air permeability: class 4;
  • water tightness: class 8A;
  • wind load resistance: C3

Thermal transmittance Uw

Regarding construction in scheme A, with dimensions of 2500 x 2200 mm, with glazing 4 Low-E/18ar/4/18ar/4 Low-E Ug=0.5 Multitech Black [48mm]

1,0 W/(m²K)

Watertightness

up to 8A

8/10

Our assessment:

Types of ornamental glass

  • Silvit
  • Master point
  • Master carre
  • Kura
  • Cathedral
  • Matte Delta
  • Colourless Flutes
  • Crepi
  • Chinchila
  • Colourless Delta
  • Mirastar
  • Decormat
  • Stopsol clear
  • Brown Stopsol
  • Grey Antisol
  • Green Antisol
  • Blue Antisol
  • Brown Antisol
  • Green Stopsol

Spacers

  • RAL 9016 White Warm Edge Spacer

  • RAL 8003 Brown Warm Edge Spacer

  • RAL 9004 Black Warm Edge Spacer

  • RAL 7035 Grey Warm Edge Spacer

  • RAL 7040 Grey Warm Edge Spacer

  • Aluminum spacer

  • RAL 8016 Brown Warm Edge Spacer
