Aluprof MB-86N

Aluminium windows

Windows in the Aluprof MB-86 system have high thermal insulation.

  • Warm passive window

  • Excellent soundproofing

  • Resistant and airtight

  • Wide range of colours

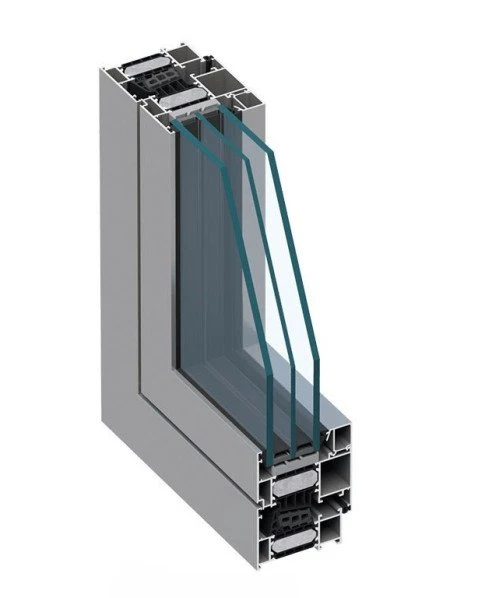

Aluprof MB-86N

The MB-86N window and door system is an advanced solution with excellent thermal parameters and high flexibility. The available variants, ST and SI, allow optimum adaptation to energy-saving needs. The exceptional strength of the profiles makes it possible to create structures of large size and weight, while a variety of options, such as MB-86US and MB-86 Casement, add design flexibility.

The most important features of the MB-86N system include:

  • a wide range of profiles guaranteeing the aesthetic look and durability of the construction,
  • innovative thermal breaks improving thermal insulation,
  • perfect sealing thanks to a two-component central gasket,
  • and extensive glazing possibilities, including anti-burglary and acoustic systems
  • and the possibility of producing anti-burglary windows and doors (classes from RC1 to RC4).

Thermal transmittance Uw

For a 1230 x 1480 mm reference window with 4 Low-E/18ar/4/18ar/4 Low-E Glazing thickness, Ug = 0.5 Multitech Black [48mm]

0,75 W/(m²K)

Watertightness

up to E900

10/10

Our assessment

Types of ornamental glass

  • Silvit
  • Master point
  • Master carre
  • Kura
  • Cathedral
  • Matte Delta
  • Colourless Flutes
  • Crepi
  • Chinchila
  • Colourless Delta
  • Mirastar
  • Decormat
  • Stopsol clear
  • Brown Stopsol
  • Grey Antisol
  • Green Antisol
  • Blue Antisol
  • Brown Antisol
  • Green Stopsol

Spacers

  • RAL 9016 White Warm Edge Spacer

  • RAL 8003 Brown Warm Edge Spacer

  • RAL 9004 Black Warm Edge Spacer

  • RAL 7035 Grey Warm Edge Spacer

  • RAL 7040 Grey Warm Edge Spacer

  • Aluminum spacer

  • RAL 8016 Brown Warm Edge Spacer

Technical information

Technical drawings

Files to download

Technical drawings

Files to download

Also check
